HDMI板
HDMI板
技术特点
•配备高性能 HDMI 接收器，接通信号后即可立即运行
•IIS 音频同步输入
•HDMI 高清接口显示
•USB 电容触摸，支持单点及多点触控，可替代鼠标和触摸板功能
•IIS 音频同步输入
•HDMI 高清接口显示
•USB 电容触摸，支持单点及多点触控，可替代鼠标和触摸板功能
向左滑动查看更多>
常用清单
| Type Size | Module | Resolution | Input interface | LCD screen output | Touch | Power Supply |

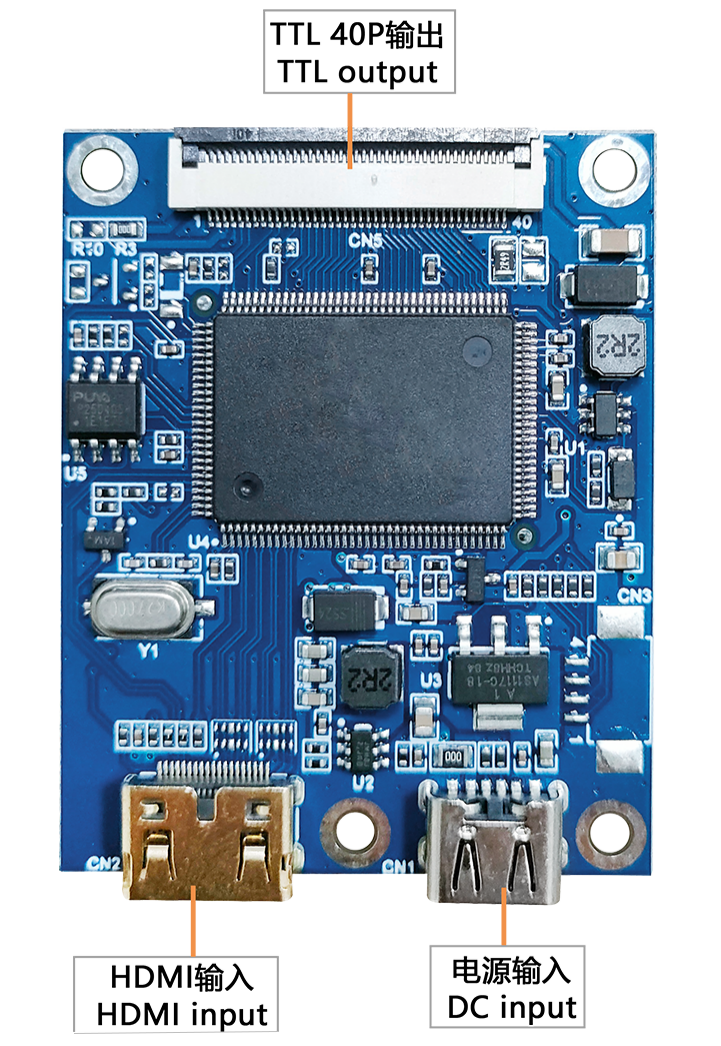

| HDMI drive board | H2TTL40P9_V2.1 | 480*480 720*720 480*960 600*1442 | MINI HDMI | TTL 40pin | without | Type-C DC 5V input |
| HDMI drive board | H2MIP30P_CTP | 720*720 800*960 600*1424 1200*1920 | MINI HDMI input | MIPI 30pin | with CTP | Type-C DC 5V input |
| HDMI drive board | H2TTL50P_60H_V1.1 | 800*480 800*600 1024*600 1024*768 | HDMI input | TTL 50pin | with CTP | DC socket 12V input |

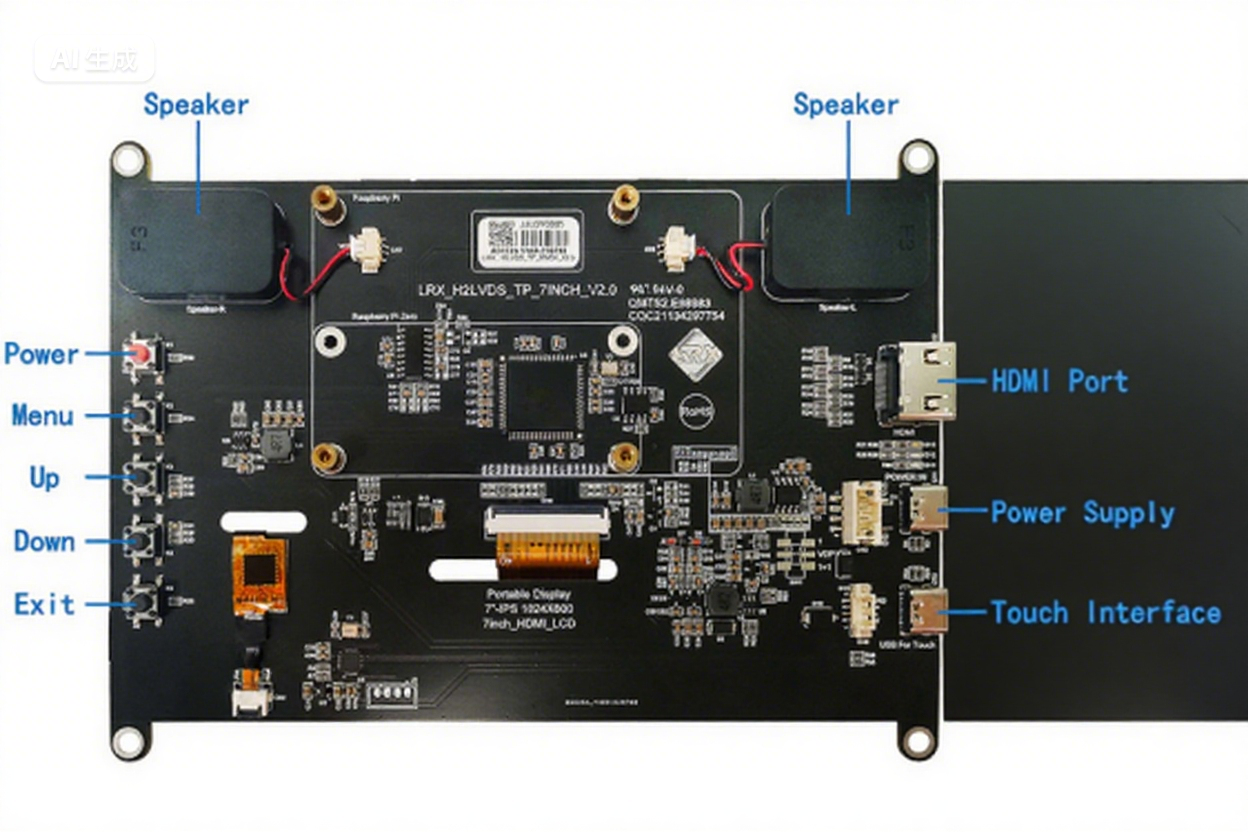

| HDMI drive board | H2LVDS-TP-7INCH-V2.0 | 1024*600 | HDMI input | LVDS 40pin | with CTP | Type-C USB DC 5V input |

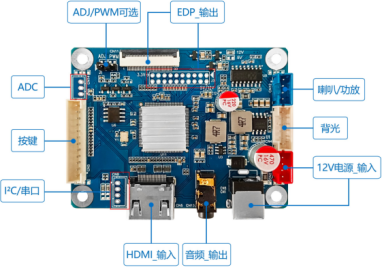

| HDMI drive board | H2E258E_L_V3.0 | 1920*1080 1920*1200 | HDMI input | EDP 30pin | without | DC socket 12Vinput |

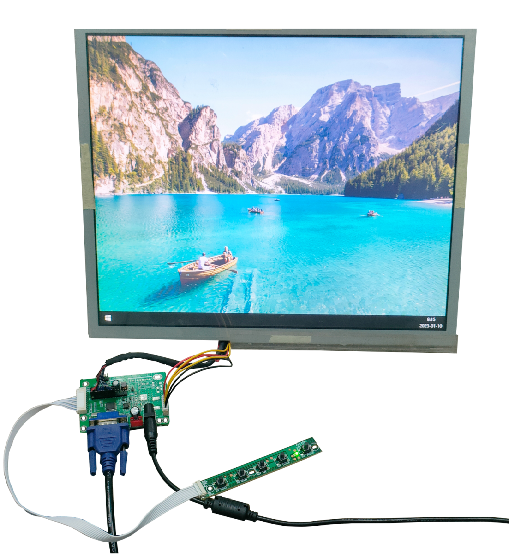

| HDMI drive board | WH2LVDS13 V1.0 | 1024*768 1280*800 1920*1080 1920*1200 | HDMI/DVA/VGA input | LVDS | without | DC socket 12V input |
| HDMI drive board | hHG81CL_V2.0 | 1024*768 1280*800 1920*1080 1920*1200 | HDMI/DVA/VGA input | LVDS | withou | DC socket 12V input |
| HDMI drive board | 2H2DP2VBO-EDP95 | 3840*2160 2560*1440 165HZ (High Resolution and Refresh Rate) |
HDMI/DP Input | EDP/VB1 | without | DC socket 12V input |
| HDMI drive board | 2H2DP_VBOEDPT61_180_V1.0 | Supports up to 4096*2160@144Hz(4K) | dual HDMI dual DP input |
EDP/VB1 | without | DC socket 12V input |
